What does an EGR valve do?
The Exhaust Gas Recirculation (EGR) valve serves a crucial role in controlling nitrogen oxide (NOx) emissions in both gasoline and diesel vehicles. This system is essential for meeting stringent emission regulations found in various countries. By facilitating the recirculation of exhaust gases back into the engine’s intake, the EGR valve helps lower the formation of NOx, a pollutant that contributes to smog and respiratory problems.
As the temperature of exhaust gases rises, so do NOx emissions. The EGR system mitigates this by returning a controlled volume of exhaust gas to the intake manifold, effectively lowering the combustion temperature. This reduction, which can reach up to 300°C, aids in decreasing NOx production during the combustion process.
The functionality of the EGR system hinges on two key components: the EGR valve itself and the EGR cooler. The cooler is designed to decrease the temperature of the exhaust gases prior to their reintroduction into the intake manifold. By incorporating these cooler gases, the overall temperature during combustion is reduced, leading to a lesser concentration of nitrogen oxides.
Here’s a brief overview of how each component operates:

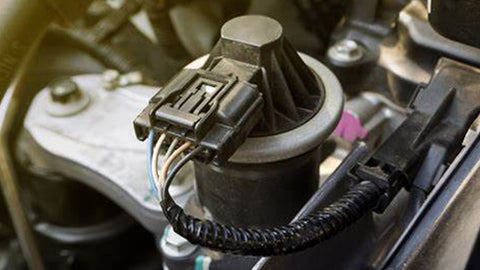

- EGR Valve: This valve regulates the amount of exhaust gas that flows back into the intake manifold. By controlling this flow, the EGR valve plays a vital role in managing engine efficiency and emissions.
- EGR Cooler: Its purpose is to reduce the temperature of exhaust gases before they mix with fresh intake air. This cooling is crucial as it helps in lowering engine combustion temperatures and subsequently the NOx production.
A properly functioning EGR system is integral for efficient engine performance and compliance with environmental standards. The modern EGR systems are typically managed electronically by the Engine Control Unit (ECU), which utilizes data from multiple sensors to determine the appropriate opening of the EGR valve.
Symptoms of a Malfunctioning EGR Valve
When the EGR valve is not functioning correctly, several noticeable symptoms can arise. Vehicle owners should be vigilant for the following signs:
- Check Engine Light Activation: The illumination of the check engine light is often a primary indication of issues with the EGR system. Diagnostic trouble codes usually fall within the low P0400 range.
- Reduced Engine Power: A failing EGR valve may lead to noticeable drops in power during acceleration.
- Increased Fuel Consumption: If the EGR valve is stuck closed or malfunctioning, it can cause higher fuel consumption.
- Unusual Noises: Drivers may hear pinging, tapping, or knocking sounds emanating from the engine.
- Rough Idle: An irregular idling experience can signal problems with the EGR valve.
Repairing the EGR Valve

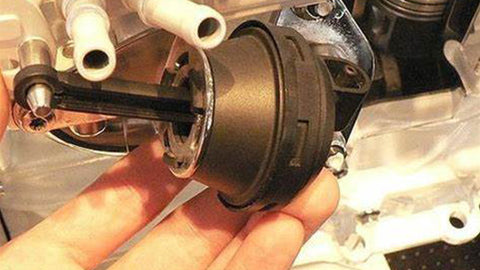

The EGR valve can often be repaired rather than replaced entirely. Given that exhaust gases flow through the valve, carbon buildup frequently occurs, leading to blockage. This buildup restricts the valve’s movement and, at times, may prevent it from opening or closing effectively.
In many cases, cleaning the EGR valve may resolve the issues. By removing the valve and applying a competent carb cleaner, one may restore its functionality. This method is particularly effective when the valve is easily accessible. However, in some vehicles, the EGR valve may be positioned in hard-to-reach areas, making cleaning impractical.
Replacing the EGR Valve
If a comprehensive assessment indicates that the EGR valve needs total replacement, it is essential to also change the gaskets. Gasket materials may vary depending on their location and temperature exposure; metal gaskets are typically used near the exhaust manifold, while paper ones are used in cooler environments. Proper installation of gaskets is crucial to prevent leaks, which can inadvertently trigger the check engine light and create confusion about the valve replacement.
Installation Procedures
Proper installation of a new EGR valve and cooler involves several necessary steps:
- General Check: Before installation, inspect the ECU’s control over the EGR valve’s position.
- Diagnostic Tool Use: Utilize a diagnostic tool to read EGR settings while the engine is running. This can help confirm whether the valve operates correctly.
- Visual Inspection: Examine electrical connections and vacuum lines for any damage or wear.
- Actuator Diagnosis: Listen for or feel the operation of the servomotor or electrical switching valve to ensure functionality.
It is wise to delete previous EGR control error codes after installation to clear any lingering faults from the system.
Potential Issues Post-Replacement
After installing a new EGR valve, several problems may arise that warrant attention:
- Malfunction of New Component: The newly installed EGR valve may not function as expected, which requires further evaluation.
- ECU Recognition Failure: The engine control unit may fail to recognize the new valve, leading to continued performance issues.
Fault codes post-installation may include, but are not limited to:
- P0400: Exhaust Gas Recirculation Flow Malfunction
- P0401: Exhaust Gas Recirculation Flow Insufficient Detected
- P0402: Exhaust Gas Recirculation Flow Excessive Detected
- P0403: Exhaust Gas Recirculation Circuit Malfunction
- P0404: Exhaust Gas Recirculation Circuit Range/Performance
- P0405: Exhaust Gas Recirculation Sensor A Circuit Low
- P0406: Exhaust Gas Recirculation Sensor A Circuit High
Post-replacement issues often stem from systemic carbon buildup within the engine, suggesting that simply replacing the EGR valve might not address the underlying pollution. The contamination level within the system can be assessed to ensure it does not negatively affect the new EGR valve’s performance.
Continued attention to the EGR system is vital for ensuring vehicle efficiency, compliance with emissions standards, and overall engine performance.
